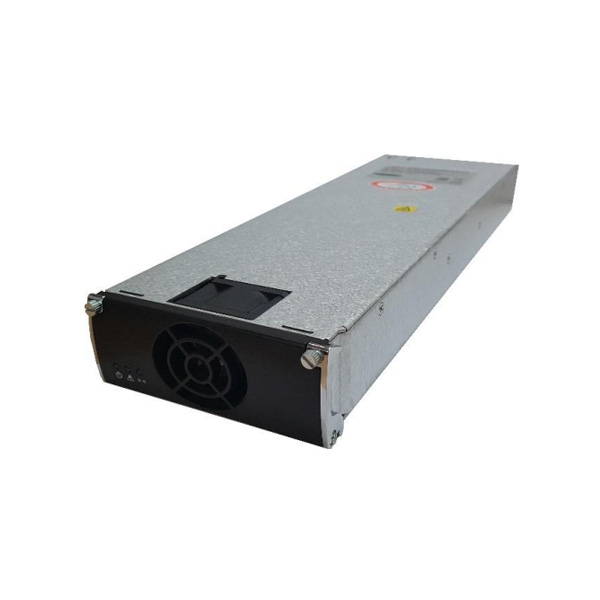

19″ 4U Shelf Type Rectifier

19" 4U Shelf Type Rectifier

AC Supply	85Vac-300Vac Normal input 176Vac-300Vac work full performance, From 176Vac derate to 50% at 85Vac linely
Input current	≤15A(Per rectifier module)
Frequency	45~66Hz
Power Factor	0.99
THD	< 5%@full load < 10%@half load Rated input and output voltage

AC Supply	-53.5V Rated output voltage
Output current	53.5V float voltage -56.4V boost voltage 200A
Voltage Regulation	≤±1%
Current Sharing	≤±5%
Efficiency	Efficiency Typical : 95%, max 96%
Ripple and Noise	≤200mV P-Peak
Psophometric noise	2mV

Operating Temperature	-40 to +70°C
Storage Temperature	-40 to +85°C
Humidity	Operating: ≤95% non-condensing Storage: ≤99% non-condensing
Dimensions	446W x 392D x 177 H (mm)
Weight	15kg (Without Rectifiers)
Monitoring	when abnormal condition ends the system will recover automatically
Controller	Two RJ45 for RS232 & Ethernet on front panel of controller
Dry contact	6 NO+6 DI
Interface	LCD

DC distribution	13 load-MCBs for load, and 2 battery-MCBs : BLVD : LLVD Front access and connection The MCB for load is available within 13 Custom options available of MCB capacity.
Low Voltage Disconnect	Bi-stable contactors should Be used as LVD(200A rated current);

High efficiency and high power density96.2% efficiency and 33.43W/in3 power density.
Digital controlDigital primary and secondary control, realize excellent monitoring and regulation.
High reliability designOne fan front-to-back air flow with latest thermal solution and experienced design.
Disconnect mains when hazardous inputRectifier Module will disconnect mains to protect itself when it can not sustain the input voltage.
Excellent EMC performanceLower interference and excellent susceptibility give module better compatibility.
Global approvalsCE and UL certified, and meet TUV standard.

Voltage	85~300VAC (Norminal 220VAC)
Frequency	45Hz ~ 66Hz
Input Current	< 15Arms at 220VAC input < 19Arms at 176VAC input
Power Factor	> 0.99
THDi	< 5%
Startup time	3s~8s

Safety	IEC60950-1 UL60950-1 EN60950-1
EMC	EN55022 ClassB (emission) IEC61000-3-2 IEC61000-3-3 IEC61000-4-2 (electrostatic discharge) IEC61000-4-3 (radiate immunity) IEC61000-4-4 (EFT) IEC61000-4-5 (surge immunity) IEC61000-4-6 (conducted immunity) IEC61000-4-8 IEC61000-4-11
Environment	ETSI EN 300 019-2 (-1,-2,-3) ETSI EN 300 132-2 Telcordia NEBS GR63 CORE Zone 4 RoHS compliant

Operation temp	-40°C ~ +75°C
Storage temp	-40°C ~ +85°C
Relative humidity	< 95% (non-condensing)
Altitude	4000m
IP level	IP 20
Input protection	6KA lightning protection
Output protection	59Vdc Overvoltage shutdown Short circuit proof Output fuse
Isolation	3.0KVAC-input and output 1.5KVAC-input and earth 0.5KVAC-output and earth
Cooling	One fan (front to back airflow)
Fan speed	Temperature and output current regulated
MTBF	> 300,000 hours (T_ambient:25°C) Telcordia SR-332 Issue 1
Acoustic noise	< 55dB at 220VAC input and full load (T_ambient < 30°C)
Dimensions	108W x 41.4H x 327.2D (mm)
Weight	2.2Kg

System	LVD functions, up to 4 User configurable alarms and setting Event log for 1000 entries with time and data password management
Battery	Temperatur compensated float charge Low voltage disconnection Automatic Capacity test Charging current limitation Boost and equalize charge
Rectifier	Individual rectifier information and control Remote control and voltage adjustment by controller

Safety	EIC60950 UL60950
EMC	EN300386 Class B (emission) EN300386 Class A (conducted immunity) IEC61000-4-6 (radiated immunity) IEC61000-4-4 (fast transients) IEC61000-4-2 (electrostatic discharge) IEC61000-4-3
Rmonics	EN 61000-3-2 Environment ETSI EN 300 019-2 (-1, -2, -3) ETSI EN 300 132-2

Humidity	Operating : ≤ 95% non-condensing Storage : ≤ 99% non-condensing
Storage Temp	-40 to +85°C
MTBF	> 300000h (T Ambient : 25°C)
Cooling	Natural air fbw
Weight	420g
Dimensions	86.5W x 182.5D x 41.5H (mm) (1U*2U)
