Data Sheet

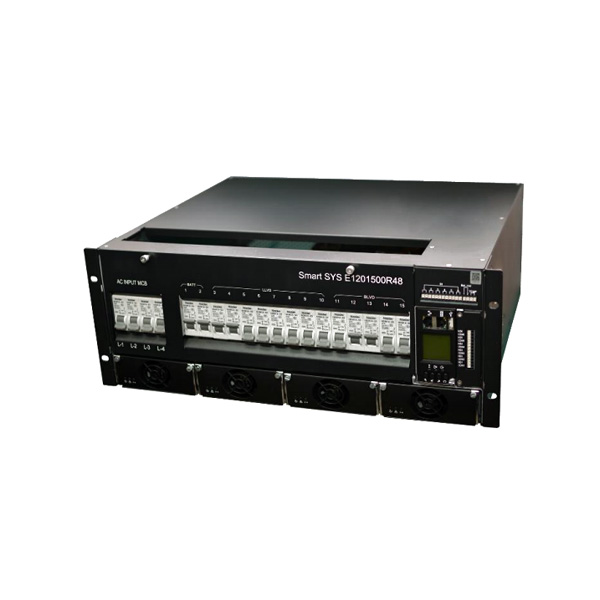

19" 4U Shelf Type Rectifier

Product Features

  • 19’’4U sub-rack, easy to be embedded into all standard telecom equipment
  • Up to 12kW system capacity with 3000W/50A rectifier module
  • Front access and front operation
  • Up to 0.99 power factor
  • Intelligent fan-cooling
  • Rectifier modules hot-swap
  • N+1 rectifier module redundancy
  • Advanced batteries monitoring and management

AC Input Specifications

AC Supply
  • 85Vac-300Vac Normal input
  • 176Vac-300Vac work full
  • performance, From 176Vac derate
  • to 50% at 85Vac linely
Input current ≤15A(Per rectifier module)
Frequency 45~66Hz
Power Factor 0.99
THD
  • < 5%@full load
  • < 10%@half load
  • Rated input and output voltage

DC Output Specifications:

AC Supply -53.5V Rated output voltage
Output current
  • 53.5V float voltage
  • -56.4V boost voltage
  • 200A
Voltage Regulation ≤±1%
Current Sharing ≤±5%
Efficiency Efficiency Typical : 95%, max 96%
Ripple and Noise ≤200mV P-Peak
Psophometric noise 2mV

General Specifications

Operating Temperature -40 to +70°C
Storage Temperature -40 to +85°C
Humidity
  • Operating: ≤95% non-condensing
  • Storage: ≤99% non-condensing
Dimensions 446W x 392D x 177 H (mm)
Weight 15kg (Without Rectifiers)
Monitoring when abnormal condition ends the system will recover automatically
Controller Two RJ45 for RS232 & Ethernet on front panel of controller
Dry contact 6 NO+6 DI
Interface LCD

Option

DC distribution
  • 13 load-MCBs for load, and 2 battery-MCBs
    : BLVD
    : LLVD
  • Front access and connection
  • The MCB for load is available within 13
  • Custom options available of MCB capacity.
Low Voltage Disconnect Bi-stable contactors should Be used as LVD(200A rated current);

Rectifier Module (48V / 3000W)

Rectifier Module (48V / 3000W)

Product Features

  • High efficiency and high power density96.2% efficiency and 33.43W/in3 power density.
  • Digital controlDigital primary and secondary control, realize excellent monitoring and regulation.
  • High reliability designOne fan front-to-back air flow with latest thermal solution and experienced design.
  • Disconnect mains when hazardous inputRectifier Module will disconnect mains to protect itself when it can not sustain the input voltage.
  • Excellent EMC performanceLower interference and excellent susceptibility give module better compatibility.
  • Global approvalsCE and UL certified, and meet TUV standard.

Input Specifications

Voltage 85~300VAC (Norminal 220VAC)
Frequency 45Hz ~ 66Hz
Input Current
  • < 15Arms at 220VAC input
  • < 19Arms at 176VAC input
Power Factor > 0.99
THDi < 5%
Startup time 3s~8s

Standards & Approvals

Safety IEC60950-1 UL60950-1 EN60950-1
EMC
  • EN55022 ClassB (emission)
  • IEC61000-3-2
  • IEC61000-3-3
  • IEC61000-4-2 (electrostatic discharge)
  • IEC61000-4-3 (radiate immunity)
  • IEC61000-4-4 (EFT)
  • IEC61000-4-5 (surge immunity)
  • IEC61000-4-6 (conducted immunity)
  • IEC61000-4-8
  • IEC61000-4-11
Environment
  • ETSI EN 300 019-2 (-1,-2,-3)
  • ETSI EN 300 132-2
  • Telcordia NEBS GR63 CORE Zone 4
  • RoHS compliant

Output Specifications

Voltage 42~58V DC (Norminal 53.5V DC)
POWER 3000W
Maximum Current 62.5A at 48VDC
Static Voltage Regulation < 0.5%
Dynamic Voltage Regulation < 5% for 10%~90% load, regulation time < 50ms
Ripple < 150mV peak to peak
Psophometric < 2mv
Current Sharing < 5%
Hold up time > 10ms
Startup time 3~8S
Efficiency 96.2%

General Specifications

Operation temp -40°C ~ +75°C
Storage temp -40°C ~ +85°C
Relative humidity < 95% (non-condensing)
Altitude 4000m
IP level IP 20
Input protection 6KA lightning protection
Output protection
  • 59Vdc Overvoltage shutdown
  • Short circuit proof
  • Output fuse
Isolation
  • 3.0KVAC-input and output
  • 1.5KVAC-input and earth
  • 0.5KVAC-output and earth
Cooling One fan (front to back airflow)
Fan speed Temperature and output current regulated
MTBF > 300,000 hours (T_ambient:25°C) Telcordia SR-332 Issue 1
Acoustic noise < 55dB at 220VAC input and full load (T_ambient < 30°C)
Dimensions 108W x 41.4H x 327.2D (mm)
Weight 2.2Kg

Control Module

Control Module

Product Features

  • Voltage range18~75 Vdc
  • Operating temperature-20 to +65°C
  • Voltage, Current5x Voltage, 3x Current, 2x
  • Digital inputup to 8
  • LVDUp to 2
  • Digital outputUp to 7
  • Local user interface3 LEDs, 4 buttons, 2.4#LCD (128x128 dots)
  • LanguagesMulti Language

Functions

System
  • LVD functions, up to 4
  • User configurable alarms and setting
  • Event log for 1000 entries with time and data
  • password management
Battery
  • Temperatur compensated float charge
  • Low voltage disconnection
  • Automatic Capacity test
  • Charging current limitation
  • Boost and equalize charge
Rectifier
  • Individual rectifier information and control
  • Remote control and voltage adjustment by controller

Standards

Safety EIC60950 UL60950
EMC
  • EN300386 Class B (emission)
  • EN300386 Class A (conducted immunity)
  • IEC61000-4-6 (radiated immunity)
  • IEC61000-4-4 (fast transients)
  • IEC61000-4-2 (electrostatic discharge)
  • IEC61000-4-3
Rmonics
  • EN 61000-3-2
  • Environment
  • ETSI EN 300 019-2 (-1, -2, -3)
  • ETSI EN 300 132-2

General

Humidity
  • Operating : ≤ 95% non-condensing
  • Storage : ≤ 99% non-condensing
Storage Temp -40 to +85°C
MTBF > 300000h (T Ambient : 25°C)
Cooling Natural air fbw
Weight 420g
Dimensions 86.5W x 182.5D x 41.5H (mm) (1U*2U)

Remote monitoring and Control

Communication RS232, RS485, TCP/IP, CAN, USB

Other Products

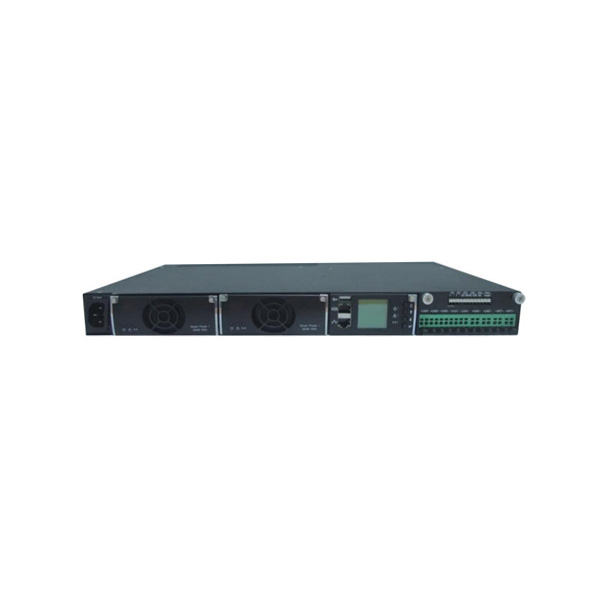

19″ 1U Shelf Type Rectifier
