19" 1U Shelf Type Rectifier

Product Features

  • 19’’1U sub-rack, easy to be embedded into all standard telecom equipment
  • Up to 2.2kW system capacity
  • Up to 0.99 power factor
  • Intelligent fan-cooling
  • Rectifier modules hot-swap
  • N+1 rectifier module redundancy
  • Advanced batteries monitoring and management
  • ECO mode
  • High power density

AC Input Specifications

AC Input 80Vac~300Vac
Input current ≤6.9A(Per rectifier)
Frequency 45~65Hz
THDi
  • < 5%@full load
  • < 10%@half load
  • Rated input and output voltage

General Specifications

Operating Temperature -40 to +70°C (-40°F to +158°F)
Storage Temperature -40 to +85°C (-40°F to +185°F)
Humidity
  • Operating: ≤95% non-condensing
  • Storage: ≤99% non-condensing
Dimensions 482.6W(19") x 44H (1U) x 279.5D
Weight ≤ 5kg (Without Rectifiers)
Protection Level IP 20

DC Output Specifications:

Output Voltage -53.5V Rated output voltage
Output current
  • -53.5V float voltage
  • -56.4V boost voltage
  • ≥ 40A
Voltage Regulation ≤ ±1%
Current Sharing ≤ ±5%
Efficiency ≥ 91%
Ripple and Noise ≤ 200mV Peak-Peak
Psophometric noise ≤ 2mV

Option

DC distribution
  • 5*10A/1P+2*20A/1P fuses for load
  • 2 fuse for battery, the rating of load fuse is 20A
  • BLVD & LLVD1 (Optional), Front operation and front connection
AC Distribution AC input mode : 1*IEC C14 socket, Front access and Front connection
Low Voltage Disconnect 80A Bi-stable contactors should be used as BLVD
Output Protection Short-circuit protection, Overload protection
Rectifier SP 48/1160, SP 48/1100, SP 48/290
Dry Contact 2 relay outputs, NO+COM
Digital Input 2 DI
Interface LCD
Temp Sensor 2

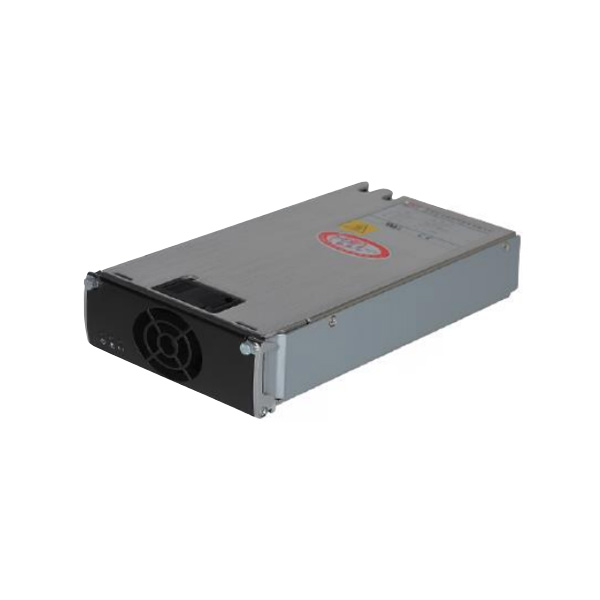

Rectifier Module (48V / 1100W)

Product Features

  • High efficiency and high power density92% efficiency and 20.15W/in3 power density.
  • Digital controlDigital primary and secondary control, realize excellent monitoring and regulation.
  • High reliability designOne fan front-to-back air flow with latest thermal solution and experienced design
  • Disconnect mains when hazardous inputSmartPowerⅠ48/1100 will disconnect mains to protect itself when it can not sustain the input voltage.
  • Excellent EMC performanceLower interference and excellent susceptibility give module better compatibility.
  • Global approvalsMeet CE, UL and TUV standard.

Input Specifications

Voltage 80~300VAC (Norminal 220VAC)
Frequency 45Hz ~ 66Hz
Input Current
  • < 5.6Arms at 220VAC input
  • < 6.9Arms at 176VAC input
Power Factor > 0.99
THDi < 5%

Standards & Approvals

Safety IEC60950-1 UL60950-1 EN60950-1
EMC
  • EN55022 ClassA (emission)
  • IEC61000-3-2
  • IEC61000-3-3
  • IEC61000-4-2 (electrostatic discharge)
  • IEC61000-4-3 (radiate immunity)
  • IEC61000-4-4 (EFT)
  • IEC61000-4-5 (surge immunity)
  • IEC61000-4-6 (conducted immunity)
  • IEC61000-4-8
  • IEC61000-4-11
Environment
  • ETSI EN 300 019-2 (-1,-2,-3)
  • ETSI EN 300 132-2
  • Telcordia NEBS GR63 CORE Zone 4
  • RoHS compliant

Output Specifications

Voltage 42~58V DC (Norminal 53.5V DC)
POWER 1100W
Maximum Current 21A at 53.5VDC
Static Voltage Regulation < 0.6%
Dynamic Voltage Regulation < 5% for 10%~90% load, regulation time < 50ms
Ripple < 200mV peak to peak
Psophometric < 2mv
Current Sharing < 5%
Hold up time > 10ms
Startup time 3~8S
Efficiency 92%

General Specifications

Operation temp -40°C ~ +75°C
Storage temp -40°C ~ +85°C
Relative humidity < 95% (non-condensing)
Altitude 4000m
IP level IP 20
Input protection 6KA lightning protection
Output protection
  • 59 ± 1 Vdc Overvoltage shutdown
  • Short circuit proof
  • Output fuse
Isolation
  • 3.0KVAC-input and output
  • 1.5KVAC-input and earth
  • 0.5KVAC-output and earth
Cooling One fan (front to back airflow)
Fan speed Temperature and output current regulated
MTBF > 300,000 hours (T_ambient:25°C) Telcordia SR-332 Issue 1
Acoustic noise ≤ 55dB at 220VAC input and full load (T_ambient < 30°C)
Dimensions 108W x 41.5H x 208D (mm)
Weight 1.2Kg

Control Module

Product Features

  • Voltage range18~75 Vdc
  • Operating temperature-20 to +65°C
  • Voltage, Current5x Voltage, 3x Current, 2x Temperature
  • Digital inputup to 8
  • LVDUp to 2
  • Digital outputUp to 7
  • Local user interface3 LEDs, 4 buttons, 2.4#LCD (128x128 dots)
  • LanguagesMulti Language

Functions

System
  • LVD functions, up to 4
  • User configurable alarms and setting
  • Event log for 1000 entries with time and data
  • password management
Battery
  • Temperatur compensated float charge
  • Low voltage disconnection
  • Automatic Capacity test
  • Charging current limitation
  • Boost and equalize charge
Rectifier
  • Individual rectifier information and control
  • Remote control and voltage adjustment by controller

Standards

Safety EIC60950, UL60950, EN60950
EMC
  • EN300386 Class B (emission)
  • EN300386 Class A (conducted immunity)
  • IEC61000-4-6 (radiated immunity)
  • IEC61000-4-4 (fast transients)
  • IEC61000-4-2 (electrostatic discharge)
  • IEC61000-4-3
Rmonics
  • EN 61000-3-2
  • Environment
  • ETSI EN 300 019-2 (-1, -2, -3)
  • ETSI EN 300 132-2

General

Humidity
  • Operating : ≤ 95% non-condensing
  • Storage : ≤ 99% non-condensing
Storage Temp -40 to +85°C
MTBF > 300000h (T Ambient : 25°C)
Cooling Natural air fbw
Weight 420g
Dimensions 86.5W x 182.5D x 41.5H (mm) (1U*2U)

Remote monitoring and Control

Communication RS232, RS485, TCP/IP, CAN, USB
